Liniotech Scalable 20kWh – 60kWh Lithium-Ion Energy Storage Solutions for Commercial & Industrial Applications

The Liniotech HV51100 Series is an advanced high voltage lithium-ion battery storage system engineered to meet the demanding needs of commercial and industrial energy storage applications. Built with cutting-edge lithium-ion high-voltage battery technology, this solution can be configured as a 20kWh battery system, expanded to 40kWh, or scaled up to a robust 60kWh commercial battery storage configuration, making it ideal for offices, factories, telecom sites, renewable energy projects, and microgrids.

High-Performance Energy Storage

Designed with intelligent air-cooling and advanced thermal management technology, the Liniotech HV51100 Series ensures safe, efficient, and reliable operation over a long 6,500+ cycle lifespan. The system supports up to 32 battery units in parallel, while inverter compatibility allows up to 10 systems in parallel, enabling large-scale commercial battery storage for industries requiring scalable backup power and renewable energy integration.

Built for Safety & Reliability

With its IP54-rated protective enclosures and internationally recognized certifications including UL1973, UL9540, UL9540A, and IEC62619, the Liniotech HV51100 Series delivers future-ready energy storage compliance. This makes it an excellent choice for grid-tied applications, off-grid solar storage, peak shaving, load shifting, and emergency backup power.

Key Benefits

• Scalable Energy Storage: Flexible configuration from 20kWh to 60kWh, expandable for larger systems.

• Commercial & Industrial Use: Designed for factories, data centers, telecom towers, and commercial buildings.

• Long Service Life: Over 6,500 deep cycles for maximum return on investment.

• Certified Safety: Complies with UL and IEC safety standards for high-voltage lithium-ion storage.

• Smart Thermal Management: Air-cooled design ensures consistent performance in demanding environments.

The Liniotech HV51100 Series is the ideal commercial and industrial lithium-ion battery solution for businesses seeking reliable backup power, renewable energy integration, and scalable storage capacity.

Model Options: BESS-R40K-R / BESS-R60K-R

Battery Module: HV51100 (5.12kWh each)

System Capacity: 20.48 – 61.44kWh (20kWh to 60kWh battery options)

Battery Type: Lithium-ion, high-voltage battery technology

Cycle Life: 6,500+ cycles @ 80% DOD

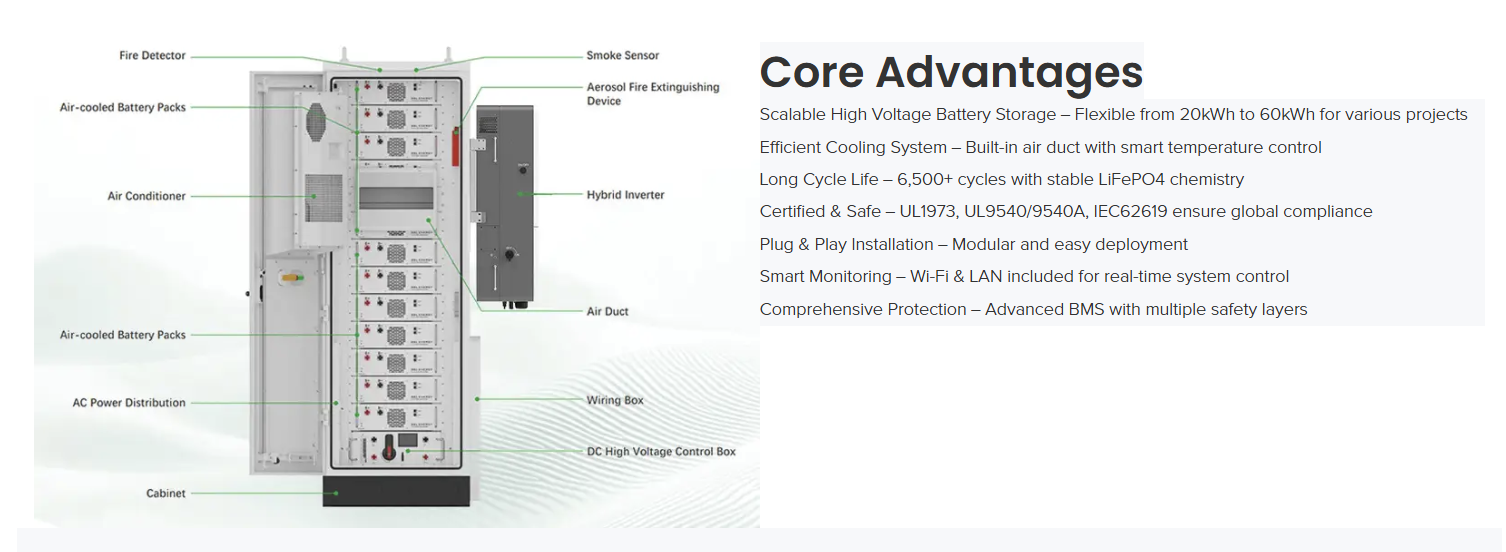

Cooling System: Built-in air duct, intelligent constant temperature control

Ingress Rating: IP54 (indoor & outdoor compatible)

Communication Ports: CAN, RS485, Wi-Fi, LAN

Warranty: Long-term performance guarantee

Certifications: UL1973, UL9540, UL9540A, IEC62619, IEC62109, UN38.3, MSDS

Frequently Asked Questions (FAQ) – Liniotech HV51100 High Voltage Lithium-Ion Battery Storage

1. Can the system be configured as a 20kWh battery?
Yes. The Liniotech HV51100 Series starts at a 20.48kWh lithium-ion battery configuration, with simple expansion up to 40.96kWh or 61.44kWh, making it ideal for small to large-scale commercial and industrial projects.

2. Is this a lithium-ion high voltage battery system?
Yes. The HV51100 is a high voltage lithium-ion (LiFePO4) battery system, designed for efficient energy storage, long cycle life, and maximum safety in commercial applications.

3. Many battery systems only support small capacities. What if my project requires larger storage?
Traditional batteries are limited, but the Liniotech HV51100 scalable energy storage solution expands from 20kWh to 60kWh, and supports parallel connections of multiple battery racks. This ensures flexible capacity growth for factories, telecom towers, microgrids, and utility-scale projects.

4. I worry about the safety risks of lithium batteries in commercial projects.
Safety is a top priority. The HV51100 uses LiFePO4 (Lithium Iron Phosphate) chemistry, known for its thermal stability and non-flammability, combined with UL9540A fire testing, UL1973, and IEC62619 certifications. This ensures reliable and safe operation in demanding environments.

5. Cooling is a big issue—batteries often overheat in demanding environments.
The Liniotech HV51100 integrates intelligent thermal management and constant-temperature air duct cooling, preventing overheating and extending service life to 6,500+ deep cycles, even under heavy industrial use.

6. Will this system be difficult to install and deploy?
Not at all. The HV51100 is modular, plug-and-play, and designed for quick installation. Businesses can start with 20kWh and expand to 60kWh or more without complex rewiring or downtime, reducing labor costs and installation time.

7. How do I know if it meets international project requirements?
The HV51100 high voltage lithium-ion battery system is fully certified with UL1973, UL9540, UL9540A, IEC62619, and UN38.3, ensuring compliance with global safety and performance standards. It is trusted for commercial buildings, data centers, factories, telecom sites, and renewable energy projects worldwide.

'
