DC Combiner Box 2 In & 1 Out for Two-Battery Solar Systems
The Liniotech DC Combiner Box 2 In & 1 Out connects two batteries in parallel on a shared busbar and sends their combined power to your inverter through one clean output. It's the simplest way to double your storage without daisy-chaining batteries together. So your home backup system stays tidy, balanced and easy to service.
Most people add a second battery the quick way. They run a jumper from battery one to battery two and land the inverter cable on the first battery. It works, but it isn't balanced. The battery closest to the inverter carries more of the load, cycles harder and wears out first. The 2-in-1-out combiner box solves that. Both batteries connect to the same busbar with their own leads, and the inverter draws from that single point. As a result, each battery shares the work evenly and your bank lasts longer.
Why Choose the 2 In & 1 Out Combiner Box
Balanced parallel wiring. Each battery has its own lead to a common busbar, so neither battery carries more than its share. That means even cycling and longer battery life.
One clean feed to your inverter. A single output runs to your inverter's battery input. You get one connection to inspect instead of a chain of jumpers and stacked lugs.
Easier service. Need to isolate or swap a battery? Every connection sits in one enclosure, so maintenance and troubleshooting take minutes.
Right-sized for home backup. The box is built for the most common home storage setup: two batteries and one hybrid inverter. You don't pay for inputs you won't use.

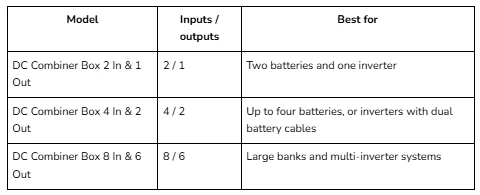

Which Liniotech Combiner Box Fits Your System?
Planning to grow beyond two batteries? Choose the 4-in-2-out now. It uses the same size enclosure, so you get room to expand without rewiring later. If two batteries are your long-term plan, the 2-in-1-out is the clean, cost-effective fit.
Example Two-Battery Builds
- 2 × Liniotech LifePower4 5.12kWh: about 10kWh for essential-load backup.
- 2 × Liniotech 10kWh 48V Power Brick: about 20kWh for whole-home backup.
- 2 × Pytes V16 16kWh: about 32kWh for larger homes and off-grid cabins.
Installation Best Practices
- Use equal-length cables from each battery to the combiner, so both batteries share current evenly.
- Bring both batteries to the same state of charge before you connect them.
- Fit a fuse or breaker on each battery lead as the battery manufacturer requires.
- Size the output cable for your inverter's full battery current. It carries the combined load of both batteries.
- Pair matching batteries: same model, capacity, and age.
Finally, have a qualified electrician install the system to local electrical code, which is the NEC in the US.

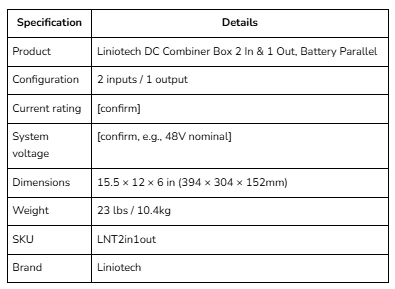

Technical Specifications
Why Buy From Liniotech
Liniotech supplies batteries, hybrid inverters and the hardware that connects them, from Cypress, Texas. Because we build complete storage systems, our combiner boxes are designed to work with the batteries and inverters we sell. Our team also helps you plan your layout before you order and supports you after installation.
Double Your Storage the Clean Way With Liniotech
A second battery should add backup, not wiring headaches. The Liniotech DC Combiner Box 2 In & 1 Out connects two batteries in a balanced, serviceable layout that protects your investment for years. Order yours today, or call 800-978-0161 or email sales@liniotech, and the Liniotech team will help you match the right batteries and inverter to your home.
Frequently Asked Questions
What does a 2-in-1-out combiner box do?
It connects two batteries in parallel on a shared busbar and sends their combined power to one output. That output then runs to your inverter's battery input.
Why not just daisy-chain two batteries?
With a daisy chain, the battery closest to the inverter carries more current and wears out faster. A combiner box gives each battery its own lead to a common point, so both batteries share the load evenly.
Does connecting two batteries in parallel double my voltage?
No. Parallel wiring keeps the voltage the same and adds the capacity together. For example, two 51.2V 100Ah batteries in parallel give you 51.2V at 200Ah, or about 10kWh.
Can I add a third battery later?
Not with this model, because it has two inputs. If you expect to expand, choose the 4-in-2-out instead. It fits the same enclosure size and takes up to four batteries.
Can I mix two different batteries?
It's best not to. Use two batteries of the same model, capacity and age. Mismatched batteries share current unevenly and age faster.
Is this a PV combiner box?
No. A PV combiner box joins solar panel strings. This box sits on the battery side and connects batteries in parallel to your inverter.
Do I need an electrician?
Yes. Battery systems carry high DC, so a qualified electrician should size the cables and protection and install the box to code.
