DC Combiner Box 8 In & 6 Out for Large Solar Battery Banks
The Liniotech DC Combiner Box 8 In & 6 Out connects up to eight batteries in parallel on a shared DC bus and distributes that power through six outputs at up to 400A. It gives large 48V battery banks one clean, central connection point. As a result, you can feed several inverter battery inputs without running a tangle of cables between every battery and every inverter.
Large battery banks create a wiring problem fast. Eight batteries wired straight to an inverter means sixteen heavy cables fighting for space on a few terminals. Worse, unequal cable lengths make some batteries work harder than others, so the bank ages unevenly and loses capacity early. The 8-in-6-out combiner box fixes both issues. Every battery lands on the same busbar, and every output draws from that same point. That means cleaner wiring, more even current sharing, and a bank that's far easier to inspect and expand.
Why Installers Choose the 8 In & 6 Out Combiner Box
Eight battery inputs on one bus. Connect up to eight batteries in parallel at a single point. So a 40kWh, 80kWh or larger bank wires up as neatly as a two-battery system.
Six outputs for multi-inverter systems. Six outputs let you run dual battery cables to multiple inverters, or split the bank between inverters and DC loads. That's the key difference from our smaller combiner boxes, and it makes this model the natural fit for paralleled inverter systems.
400A of current capacity. The box handles up to 400A of charge and discharge current. At a nominal 51.2V, that works out to roughly 20kW of continuous battery power flowing through one enclosure.
More even current sharing. When each battery connects to a common busbar with equal-length leads, no single battery carries more than its share. As a result, your batteries cycle evenly and the whole bank lasts longer.
Built for easy service and expansion. All connections sit in one enclosure, so inspection and troubleshooting take minutes instead of hours. And when you add batteries later, you simply land them on an open input.

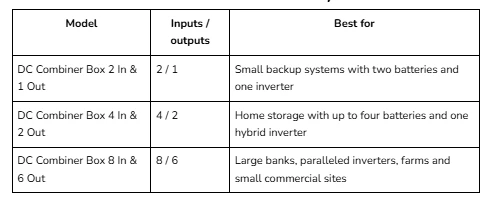

Which Liniotech Combiner Box Fits Your System?
If your bank will grow beyond four batteries, or you run two or more inverters, start with the 8-in-6-out. Buying the larger box now costs less than rewiring the whole bank later.
Example Battery Bank Builds
- 8 × Liniotech LifePower4 5.12kWh: about 41kWh of storage for whole-home backup.
- 8 × Liniotech 10kWh 48V Power Brick: about 80kWh for off-grid homes, farms and workshops.
- 8 × Pytes V16 16kWh: about 128kWh for small commercial storage.
In every case, the combiner box keeps the wiring identical: eight leads in, and up to six leads out to your inverters.
Installation Best Practices
High-current DC systems reward careful installation. For that reason, follow these practices on every build:
- Use equal-length battery cables from each battery to the combiner, so every battery shares current evenly.
- Bring all batteries to the same state of charge before connecting them in parallel.
- Fit a fuse or breaker on each battery lead as the battery manufacturer requires.
- Size cables for the full current they will carry, and torque every terminal to specification.
- Use batteries of the same model, capacity and age. Never mix chemistries in one bank.
Finally, have a qualified electrician install the system to your local electrical code, which is the NEC in the US.
Why Buy From Liniotech
Liniotech supplies batteries, hybrid inverters and the balance-of-system hardware that connects them, from our base in Cypress, Texas. Because we design complete storage systems, our combiner boxes are sized to work with the batteries and inverters we sell. Our team also helps you plan the bank layout before you order and supports you after installation.
Build a Bigger, Cleaner Battery Bank With Liniotech
A large battery bank is only as reliable as its wiring. The Liniotech DC Combiner Box 8 In & 6 Out gives your system one clean, balanced connection point that's easy to service and ready to grow. Order yours today, or call 800-978-0161 or email sales@liniotech.com, and the Liniotech team will help you plan the right battery and inverter layout for your project.
Frequently Asked Questions
What is an 8 in 6 out DC combiner box?
It's an enclosure with a common busbar that connects up to eight battery inputs in parallel and distributes their combined power through six outputs. Installers use it to organise large battery banks and to feed several inverters from one shared battery bus.
Why would I need six outputs?
Most large hybrid inverters use two battery cables each, and paralleled systems often run two or three inverters. Six outputs cover that setup cleanly, with spare capacity for DC loads or future expansion.
How much power can 400A handle?
On a 51.2V lithium bank, 400A equals roughly 20kW of continuous power. So the box suits systems where the combined battery charge or discharge rate stays within that limit.
Is this the same as a PV combiner box?
No. A PV combiner box joins solar panel strings before the inverter. This box sits on the battery side and connects batteries in parallel to your inverter's battery inputs.
Can I mix different batteries in one bank?
It's best not to. Use batteries of the same model, capacity and age, and never mix chemistries. Mismatched batteries share current unevenly and wear out faster.
Do I need an electrician to install it?
Yes. Battery banks carry very high DC currents, so a qualified electrician should size the cables and protection devices and install the box to local electrical code.
Can I start small and add batteries later?
Yes. Connect the batteries you have now, then land new ones on open inputs as your needs grow. Just match the new batteries to the existing ones and balance their charge first.
