Seraphim 405W High-Efficiency Monofacial Solar Panel – PERC 182mm | Black Module | UL & IEC Certified
25-Year Linear Power Warranty | 15-Year Product Warranty | One Pallet – 36 Panels
NOW IN STOCK – Houston, TX USA Warehouse (Fast 2-Day Shipping!)

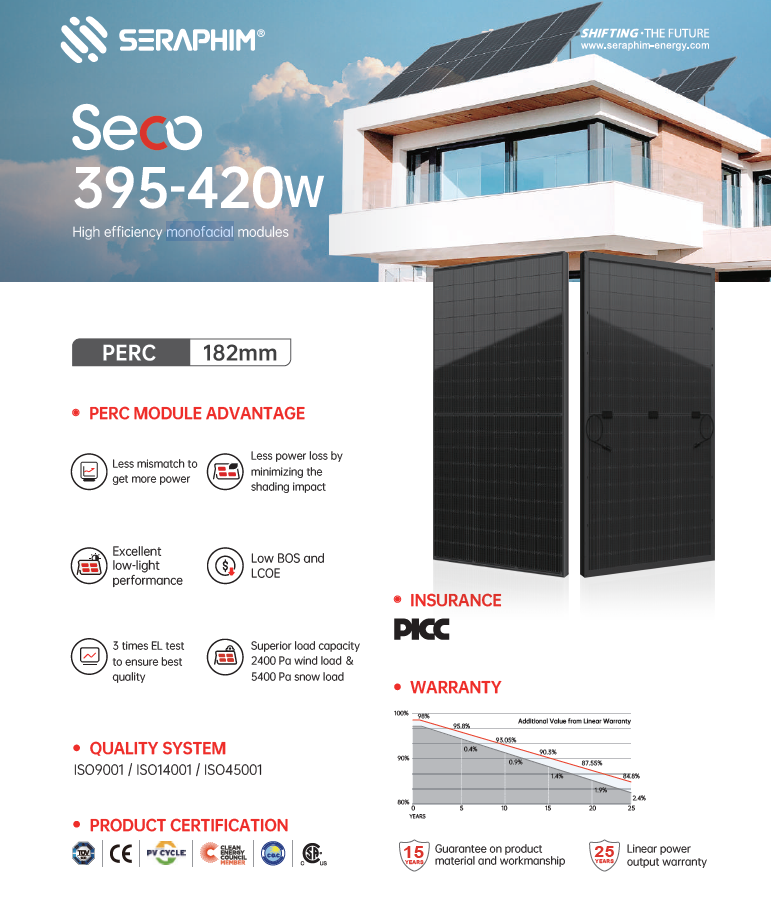

Seraphim’s SRP-BMD-HV 182mm monofacial PERC series delivers exceptional performance, superior durability, and industry-leading reliability. Engineered with advanced manufacturing and tested through a strict ISO-certified quality assurance system, the Seraphim 405W module offers top-tier efficiency, excellent low-light response, and long-term power stability backed by a 25-year linear power output warranty.
Key Advantages
✔ High-Efficiency PERC 182mm Cells
Designed for maximum power extraction with excellent temperature stability.
✔ Low Mismatch & Reduced Shading Loss
Optimized cell layout minimizes internal resistance and shading impact, increasing total system yield.
✔ Superior Mechanical Load Capacity
-
5400 Pa front-side snow load
-
2400 Pa rear-side wind load
Built for harsh environments.SRP-(395-420)-BMD-HV_182_EN_202…
✔ Excellent Low-Light Performance
High output even under cloudy or early-morning/late-afternoon conditions.
✔ Triple EL Testing
Ensures structural integrity and eliminates micro-cracks before leaving the factory.
✔ Globally Certified Quality System
-
ISO9001
-
ISO14001
-
ISO45001
✔ Product Certifications
TÜV, CEC, PV CYCLE, UL, CE, CSA (per datasheet).
SRP-(395-420)-BMD-HV_182_EN_202…

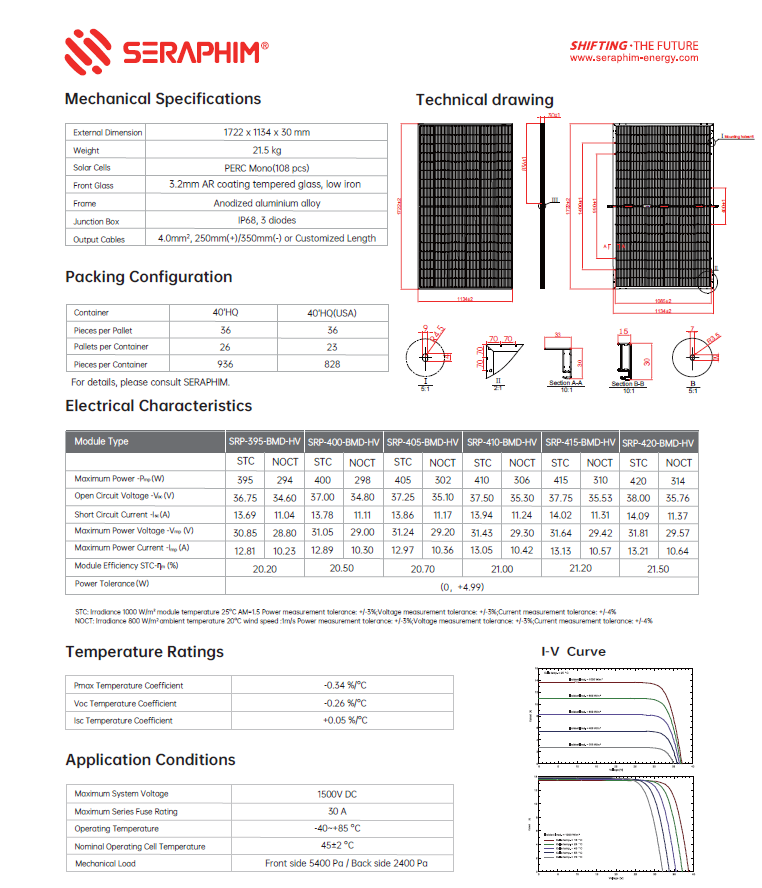

Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions | 1722 × 1134 × 30 mm (67.8" × 44.6" × 1.18") |
| Weight | 21.5 kg (47.4 lbs) |
| Cell Type | PERC Mono – 108 pcs |
| Front Glass | 3.2 mm AR-coated tempered glass, low iron |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 bypass diodes |
| Output Cables | 4.0 mm², 250 mm (+) / 350 mm (–) or custom length |
SRP-(395-420)-BMD-HV_182_EN_202…
Packing Configuration
| Container Type | Panels per Pallet | Pallets per Container | Total Panels |
|---|---|---|---|
| 40' HQ (USA) | 36 | 23 | 828 |
| 40' HQ (Standard) | 36 | 26 | 936 |
SRP-(395-420)-BMD-HV_182_EN_202…
Electrical Characteristics (From SRP-405-BMD-HV Specs)
| Parameter | Value (STC) |
|---|---|
| Maximum Power (Pmax) | 405 W |
| Open-Circuit Voltage (Voc) | 37.25 V |
| Short-Circuit Current (Isc) | 13.86 A |
| Voltage at Pmax (Vmp) | 31.24 V |
| Current at Pmax (Imp) | 12.97 A |
| Module Efficiency | 20.7% |
| Power Tolerance | 0 to +4.99 W |
SRP-(395-420)-BMD-HV_182_EN_202…
Temperature Ratings
| Coefficient | Value |
|---|---|
| Pmax Temp Coefficient | –0.34 %/°C |
| Voc Temp Coefficient | –0.26 %/°C |
| Isc Temp Coefficient | +0.05 %/°C |
Application Conditions
| Specification | Value |
|---|---|
| Max System Voltage | 1500V DC |
| Max Series Fuse Rating | 30A |
| Operating Temperature | –40°C to +85°C |
| Nominal Operating Cell Temp (NOCT) | 45 ± 2°C |
| Mechanical Load | 5400 Pa front / 2400 Pa back |
Why Choose Seraphim 405W for Your Project?
-
Tier-1 bankable manufacturer
-
High efficiency with strong low-light output
-
Proven reliability with robust warranties
-
Ideal for residential, commercial, and ground-mount deployments
-
Fast U.S. fulfillment from Houston warehouse
