450W Bifacial Solar Panels for Ground Mounts and Homes

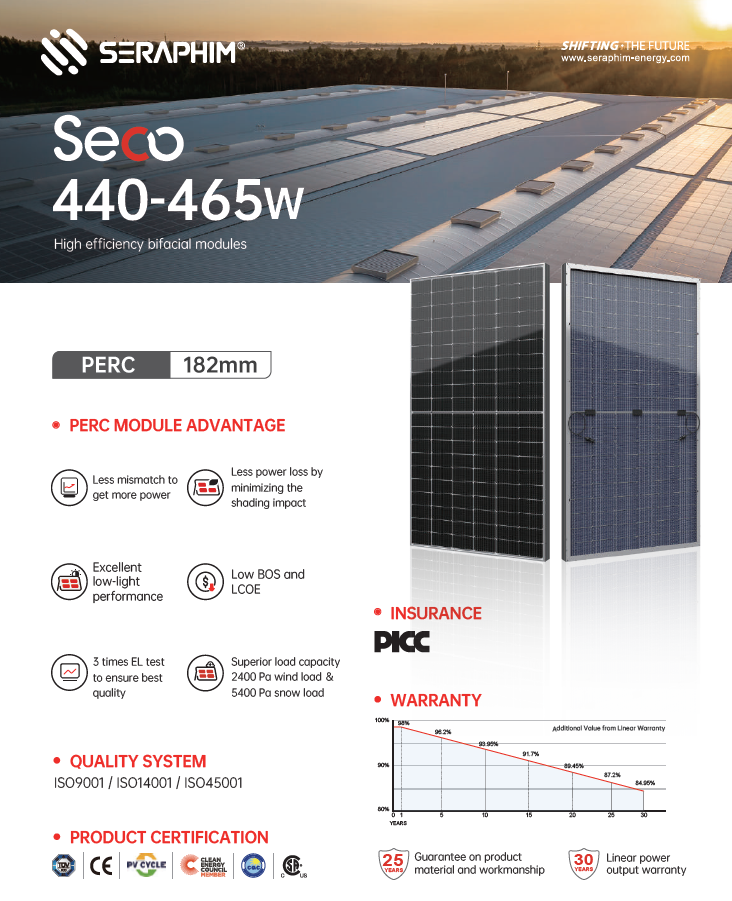

The Seraphim 450W bifacial solar panel is a Tier 1 monocrystalline PERC photovoltaic module with 120 half-cut cells and dual-glass construction. It produces 450W from the front side, and its glass rear captures reflected light for up to 30% additional energy. Sold here as a full pallet of 36 panels, it delivers 16.2kW of DC capacity at wholesale pricing, with a 15-year product warranty and a 30-year linear power warranty.
Ground-mount systems give you full control over tilt, orientation and height. But most panels only use the sunlight that hits their front. Bifacial panels change that. Mounted above gravel, light soil, snow or a reflective surface, the Seraphim 450W turns reflected light into extra kilowatt-hours. As a result, you get more energy from the same footprint. And at 6.3 ft long and about 60 lb, it’s far easier to handle than large-format commercial modules, which makes it a smart fit for homes, farms and small businesses.
Key Features
450W Mono PERC With 120 Half-Cut Cells
Half-cut 182mm monocrystalline PERC cells lower internal resistance and split each panel into two independent halves. That means less power loss from partial shading, cooler operation and stronger output in low light.
Up to 30% Bifacial Energy Gain
The transparent rear glass absorbs light reflected from the ground and nearby surfaces. In well-designed ground mounts and carports, that rear-side gain adds up to 30% more energy and lowers your cost per kilowatt-hour.
Dual-Glass Durability
The panel uses 2.0mm anti-reflective, low-iron semi-tempered glass on both sides, framed in anodized aluminum. It’s rated for 5,400 Pa of front-side snow load and 2,400 Pa of rear-side wind load, and it operates from -40°C to 85°C. An IP68 junction box with 3 bypass diodes protects the electrical connections.
Manageable Size for Faster Installs
At 75.2 × 44.6 in and 60.2 lb, the Seraphim 450W is large enough for strong output yet small enough for a two-person crew to handle easily. It’s a practical middle ground between residential 400W panels and large commercial 550W+ modules.
Tested Quality and Certifications
Seraphim manufactures under ISO 9001, ISO 14001 and ISO 45001 quality, environmental and safety systems. The module also carries UL and IEC certification, and it ships with MC4-compatible connectors.
450W Bifacial Rear-Side Power Gain
Rear-side gain depends on mounting height, tilt and how reflective the ground is (albedo). Here’s what the Seraphim 450W can produce at each gain level:
| Rear-side gain | Total power output |
|---|---|
| 10% | 495W |
| 15% | 518W |
| 20% | 540W |
| 25% | 563W |
| 30% | 585W |
Getting the Most From Ground-Mount Bifacial Panels
A few design choices make a big difference to bifacial output:
- Raise the panels. Keep the bottom edge at least 3 ft (1m) above the ground so reflected light reaches the rear glass.
- Choose a bright surface. Grass typically adds 5–10% rear gain, light gravel 10–15%, and white stone, sand or snow 15–25% or more.
- Keep the rear side clear. Use racking that doesn’t block the back of the panel with wide rails or cross-bracing.
- Space your rows. Wider row spacing lets more light reach the ground between rows.
Planning a rooftop system instead? Flush-mounted panels see little rear gain, so the Seraphim 405W all-black panel is often the better value for standard residential roofs. For large commercial and utility-scale arrays, see the Seraphim 550W bifacial panel.
What’s on One Pallet
- 36 panels × 450W = 16.2kW of DC front-side capacity
- About 2,170 lb (983 kg) of panels, before packaging
- Matched panels from one production batch for consistent string performance
- 19 pallets per 40ft container (684 panels) for larger projects
A full pallet ships by freight, so plan for a forklift or liftgate delivery. Our team can arrange liftgate service when needed.
Inverter Compatibility and String Sizing
With 13.24A operating current and 13.86A short-circuit current, the Seraphim 450W works with most modern string inverters, hybrid inverters, microinverters and optimizers rated for 14A or higher inputs. Keep in mind that bifacial gain raises real-world current slightly, so leave some headroom on each input.
For string sizing, the 41.42V open-circuit voltage rises in cold weather. Here’s how many panels fit in series at around -10°C (14°F):
| Inverter max DC voltage | Max panels per string |
|---|---|
| 500V | 11 |
| 600V | 13 |
| 1,000V | 22 |
| 1,500V | 33 |
Always calculate with your site’s record low temperature. For a complete system, pair these panels with a Sol-Ark hybrid inverter and add residential energy storage or commercial energy storage to use your solar day and night.
About Seraphim Solar
Seraphim Solar is a global Tier 1 module manufacturer specializing in high-efficiency PERC and bifacial technology. Its modules power residential, commercial and utility projects worldwide. Tier 1 status reflects a manufacturer’s production scale and bankability, which is why installers, developers and lenders trust Seraphim modules for long-term projects.

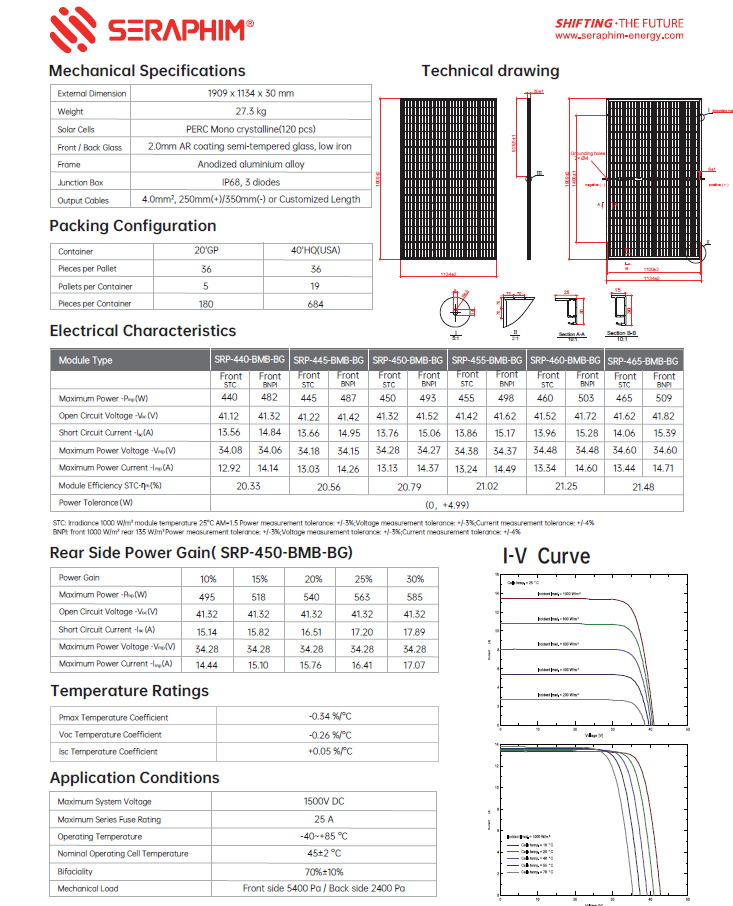

Technical Specifications
Model: SRP-450-BMB-BG
Electrical Characteristics (STC)
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 450W |
| Power tolerance | 0 to +4.99W |
| Open-circuit voltage (Voc) | 41.42V |
| Short-circuit current (Isc) | 13.86A |
| Max power voltage (Vmp) | 34.38V |
| Max power current (Imp) | 13.24A |
| Module efficiency | 20.8% |
Mechanical Characteristics
| Specification | Value |
|---|---|
| Cell type | Monocrystalline PERC, 120 half-cut cells (182mm) |
| Dimensions | 75.2 × 44.6 × 1.18 in (1909 × 1134 × 30 mm) |
| Weight | 60.2 lb (27.3 kg) |
| Glass | 2.0mm AR-coated semi-tempered, low-iron, front and back |
| Frame | Anodized aluminum alloy |
| Junction box | IP68, 3 bypass diodes |
| Output cables | 4.0mm², 250mm (+) / 350mm (−) |
| Connectors | MC4 / EVO2 compatible |
| Mechanical load | 5,400 Pa front / 2,400 Pa rear |
Operating Conditions
| Specification | Value |
|---|---|
| Max system voltage | 1,500V DC |
| Max series fuse rating | 25A |
| Operating temperature | -40°C to 85°C (-40°F to 185°F) |
| NOCT | 45°C ± 2°C |
| Temperature coefficient (Pmax) | -0.34%/°C |
| Temperature coefficient (Voc) | -0.26%/°C |
| Temperature coefficient (Isc) | +0.05%/°C |
| Product warranty | 15 years |
| Power warranty | 30-year linear power output |
Packaging
| Specification | Value |
|---|---|
| Panels per pallet | 36 |
| DC capacity per pallet | 16.2kW |
| Pallets per 40HQ container | 19 |
| Panels per container | 684 |
Buy Seraphim Solar Panels From Liniotech
Liniotech stocks Seraphim solar panels in our Houston, Texas warehouse, alongside the hybrid inverters and LiFePO4 batteries that complete your system. We’re a retail partner of The Home Depot, and every Seraphim 450W pallet ships free within the USA, usually within 1–2 days. Browse our full range of bifacial solar panels, or contact our team for multi-pallet and container pricing.
Order Your Seraphim 450W Pallet Today
Get more energy from every square foot of your array. The Seraphim 450W bifacial solar panel pallet gives you 36 matched, dual-glass Tier 1 panels built for ground mounts, carports and larger homes. Order your pallet today, or call 800-978-0161 or email sales@liniotech.com, and the Liniotech team will help you design your array and match the right inverter and battery storage.
Frequently Asked Questions
What is a bifacial solar panel?
A bifacial solar panel generates electricity from both sides. The front captures direct sunlight, while the glass rear captures light reflected from the ground or surrounding surfaces. That adds up to 30% more energy in ideal installations.
Are bifacial panels good for ground mounts?
Yes. Ground mounts are the best use case for bifacial panels, because you can raise the panels, choose a reflective ground surface and leave the rear side open. Those three factors drive rear-side gain.
How much power does a pallet of 450W panels produce?
One pallet of 36 Seraphim 450W panels provides 16.2kW of front-side DC capacity. In a sunny US location, that typically produces roughly 65–80kWh per day, plus additional energy from bifacial rear-side gain.
Can I install 450W bifacial panels on my roof?
Yes, but flush-mounted rooftop panels receive very little reflected light, so you’ll get limited bifacial benefit. For standard roofs, a monofacial panel like the Seraphim 405W usually offers better value.
Is a 450W solar panel too big for residential use?
Not for most homes. At 6.3 ft long and 60 lb, the 450W suits larger roofs, ground mounts and carports. Smaller or more complex roofs may fit 400W-class panels more easily.
Are Seraphim solar panels Tier 1?
Yes. Seraphim is recognized as a Tier 1 solar manufacturer, reflecting its production scale, financial strength and bankability for long-term projects.
Do these panels work with microinverters?
Yes, with most modern microinverters. The 13.24A operating current falls within the input range of current high-power microinverters and optimizers. Leave headroom for the extra current from bifacial gain.
What warranty comes with the Seraphim 450W?
Seraphim provides a 15-year product warranty and a 30-year linear power output warranty on this bifacial module.
How are the panels shipped?
Each pallet ships free by freight from our Houston, Texas warehouse, usually within 1–2 days. Plan for a forklift or liftgate delivery, since a full pallet weighs about 2,170 lb.
