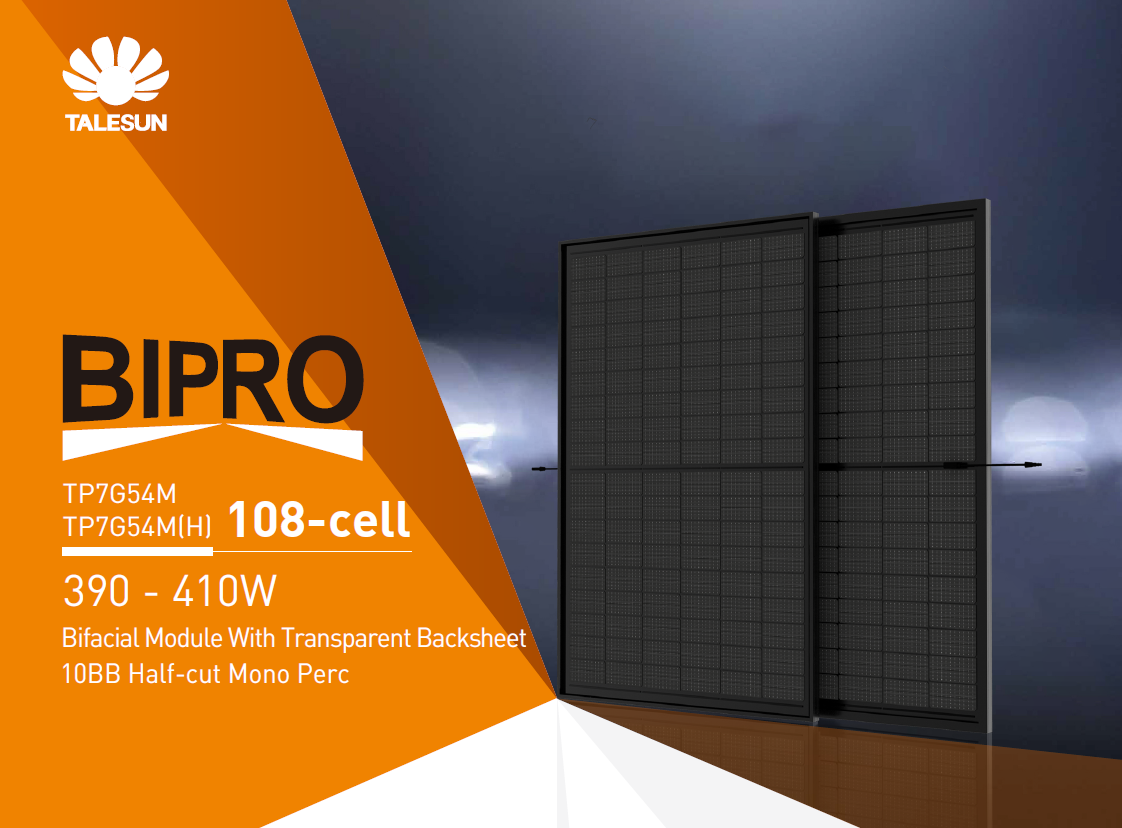

Talesun 405W High Quality Solar Panel Bifacial Module Transparent Black sheet 10BB Half-cut UL & IEC Certification
25-Year Power Output Warranty | Tier-1 Mono Solar Panel | One Pallet - 36 PCs
Stock in HOUSTON USA Warehouse!!
Talesun Solar is constantly innovating on new products and technologies. Our business product development strategy is mainly inspired by market demands and expectations. The Talesun Solar R&D center consists of a laboratory of more than 5000 m² equipped with state-of-the-art automated equipment.
Talesun Solar guarantees excellent quality, tested and certified, and remarkable efficiency, all of which allow very long guarantees: 12 years product warranty and 25 years of efficiency.
Choose your solar panel wattage and we'll ship a full pallet directly to your doorstep within 2 Days!
9BB Half-cut Cell Technology
New circuit design, lower internal current, lower Rs loss Ga dopped wafer, attenuation ＜2% (1st year) / ≤0.45% (Linear)
Industry Leading High Yield
Bifacial PERC cell technology, 5%-25% more yield depends on different conditions
Excellent Anti-PID Performance
2 times of industry standard Anti-PID test
Wider Application
No water-permeability and high wear-resistance, can be widely used in high-humid, windy and dusty area IP68 Junction Box High waterproof level
Talesun Solar Panel Specification
The TALESUN TP7G54M is a full-black high-quality bifacial solar module with a maximum power output of 405 watts that delivers exceptional performance and durability for residential solar systems. Full-black aesthetic appearance with a transparent black sheet, and 1200mm cable length, LJQ-3-CYS connector. With exceptional performance, durability, and reliability, it is extremely suitable for distributed projects.
Product Overview
| Maximum Power | 405Watts |
| Technology | Half-cut Mono Perc |
| Efficiency | 20.7% |
| Dimensions | 67.80" x 44.65" x 1.18 inches(1722*1134*30mm) |
| Weight | 47.4 lbs (21.5kg) |
| Frame | Anodized Aluminum Alloy |
| Warranty | 12 years for product, 25 years for performance |
| Certificates | UL 61730 / IEC61216 / IEC 61730 |

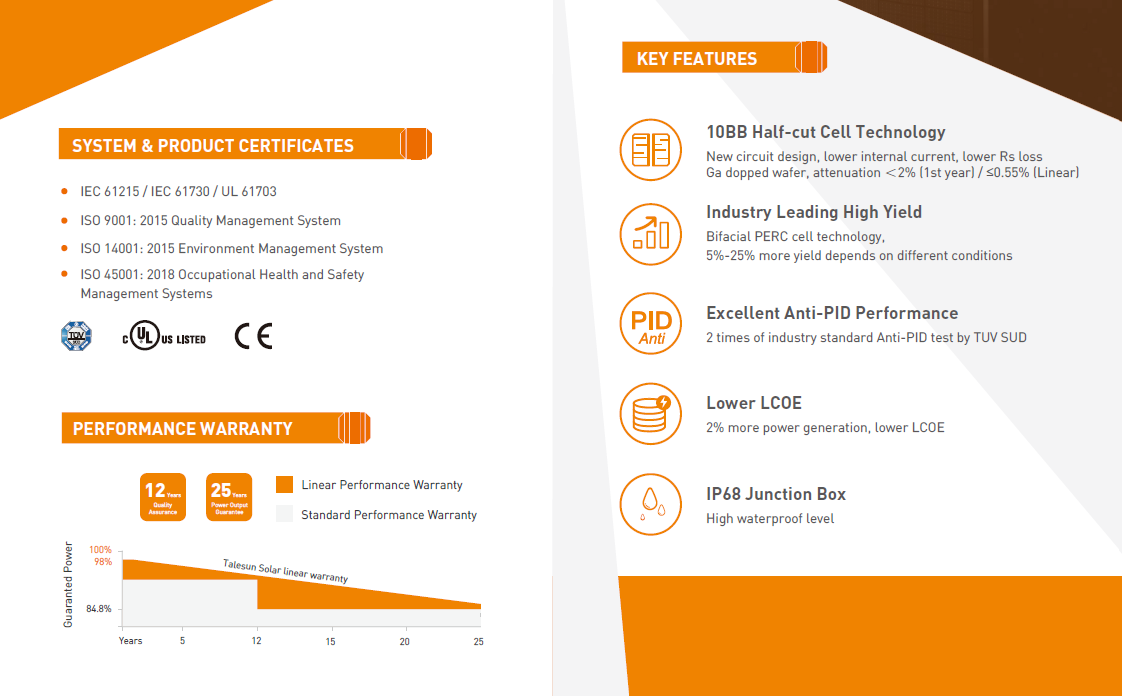

Product Key Features
- 10BB Half-cut Cell Technology, Excellent cell efficiency
- Significantly lower the risk of hot spot
- Excellent Anti-PID Performance
- Full black and superior aesthetics
- IP68 Junction Box, High waterproof level

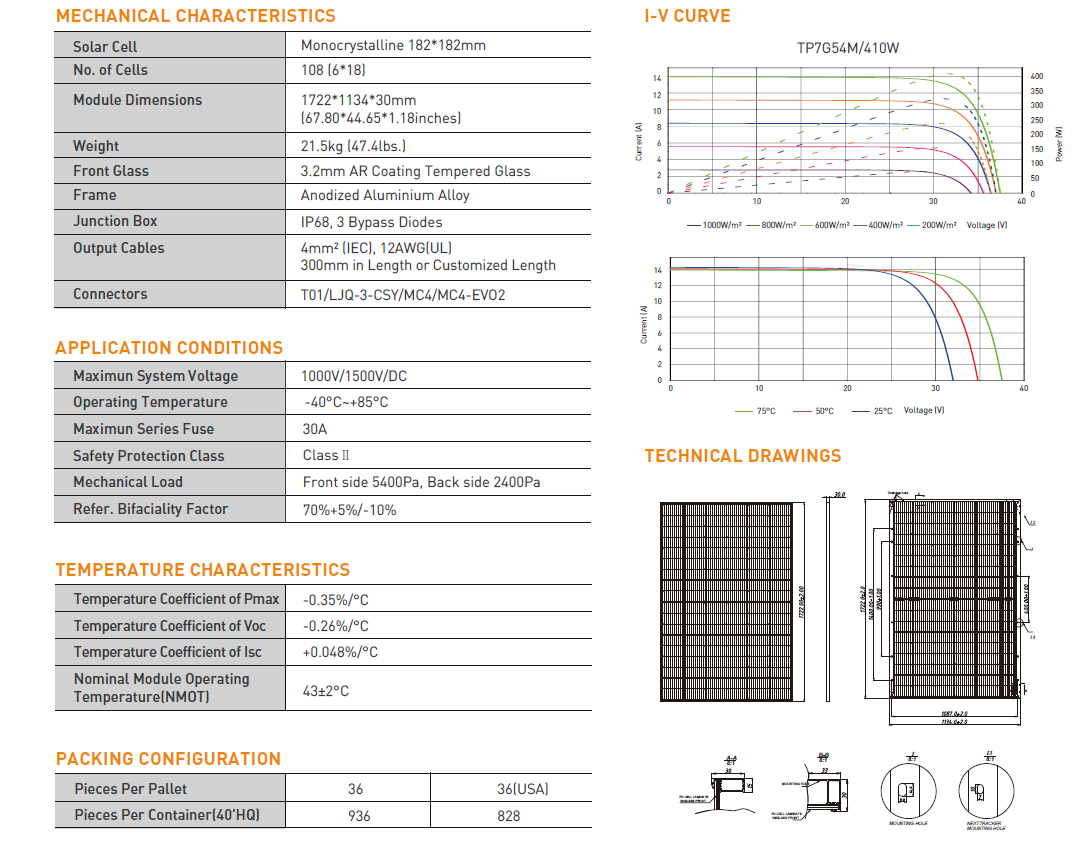

Product Specifications
- Maximum Power: 405 W
- Operating Voltage: 31.24V
- Operating Current: 12.97A
- Open Circuit Voltage: 37.25V
- Short Circuit Current: 13.86A
- Maximum System Voltage: 1000/1500V /DC
- Maximum Series Fuse Rating: 30A
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Junction Box: IP68, 3 Bypass diodes
- Connectors: MC4/MC4-EV02/T01/LJQ-3-CSY
- Cables: 1200mm(With Connectors) or Customized Length
